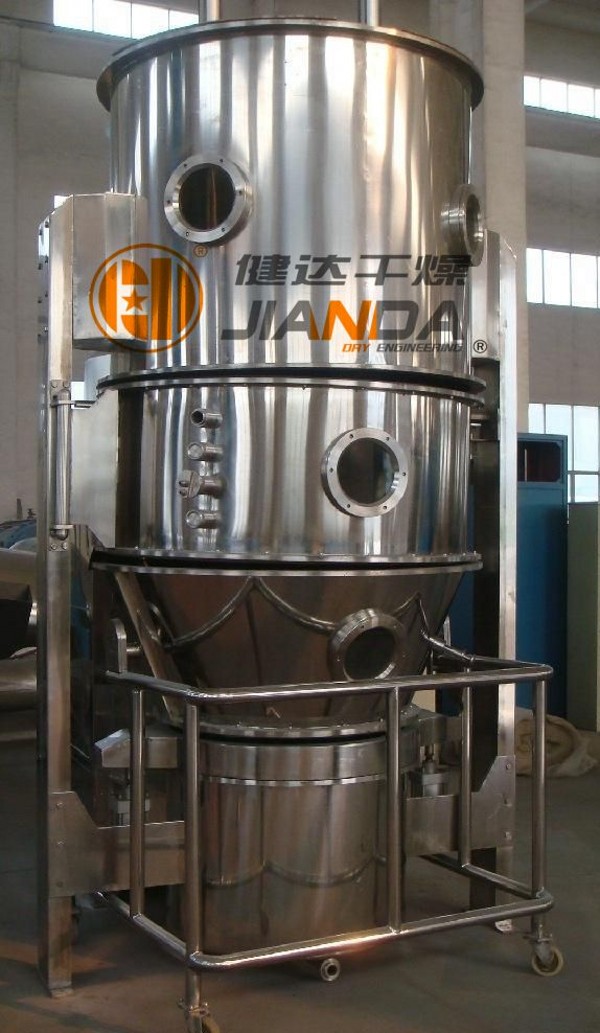

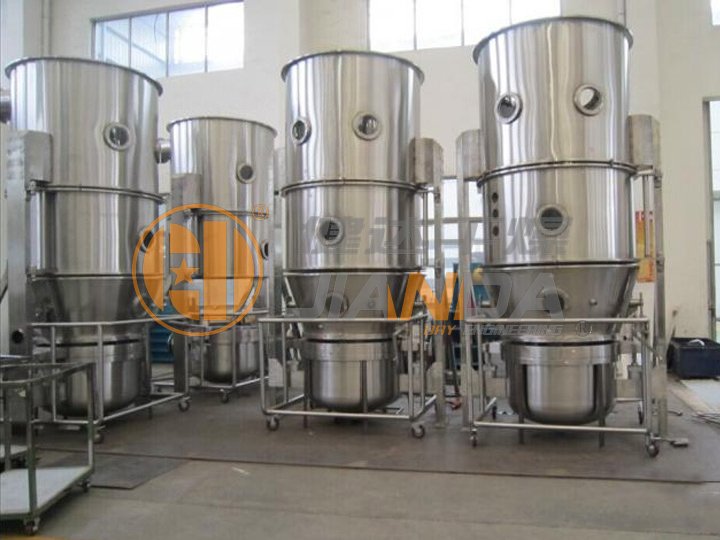

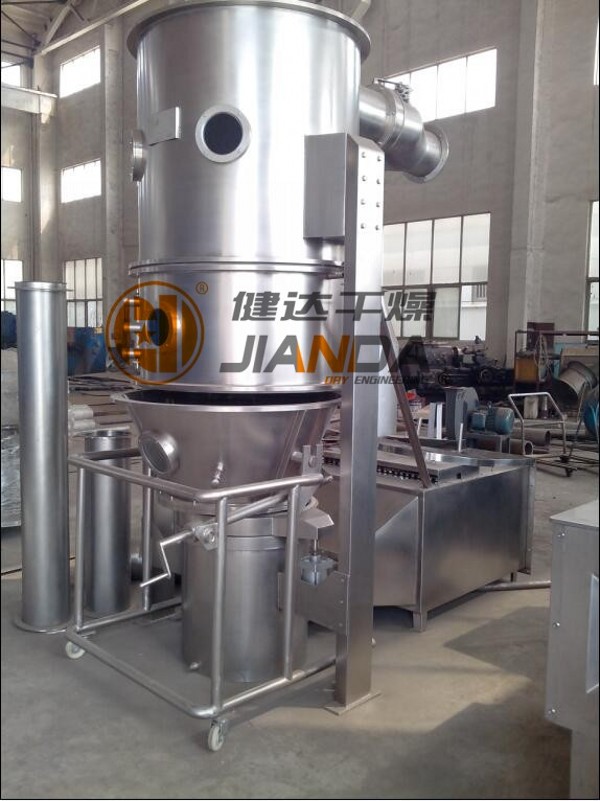

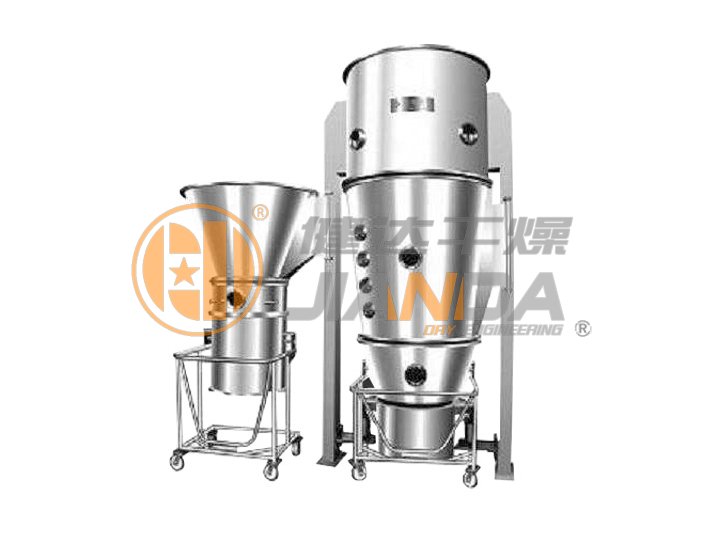

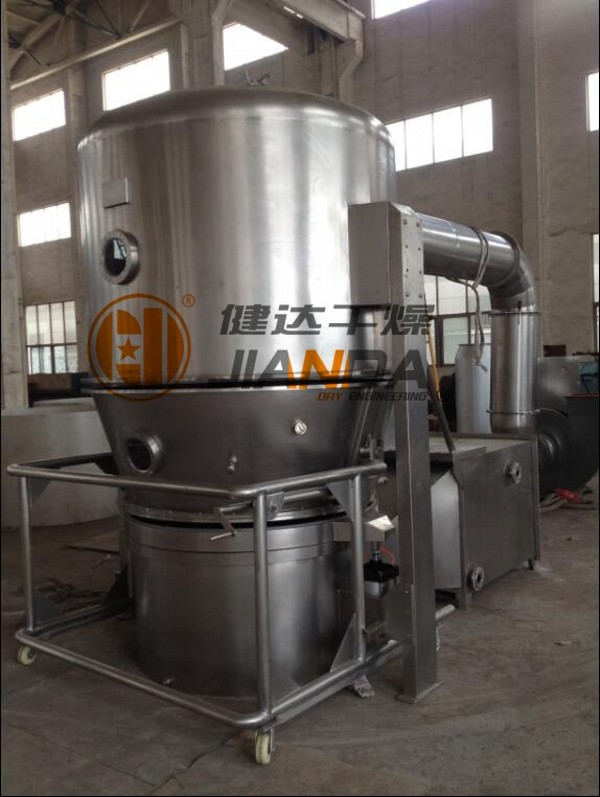

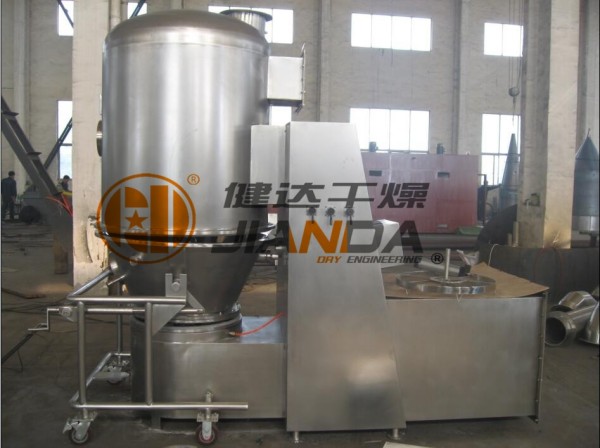

FL, FG Fluidizing And (Granulating) Dryer

Key word:Fluidizing And Granulating Dryer,Granulating Dryer
Case Overview:Because of powder granulating, the uidity can be improved and the powder dust can be reduced.Because of powder granulating, the solubility is improved.The procedures of mixing, granulating and drying can be nished in one ste…

FEATURES

1. The powder granulating can improve the liquidity and reduce dust;
2. The powder granulating can improve the solubility;
3. Mixing, granulating, and drying can be done by the same machine(one step granulation);
4. Use electrostatic to filter materials, safe working condition;
5. The atomizer for adhesive adapts multiple spray lances, the particle is uniform and the qualified rate of finished product is high;
6. There is no dead corner in granulator so the feeding and discharging is quick and convenience.


APPLICATION

GRANULATING AND COATING
Medicine
- Granulating: Tablet Granule, Quick Solved Granule, Granule Capsule
-Coating: Granule, Pill Protection, Formulated Color, Slow Release, Film, Enteric
Foodstuff
- Sugar, Coffee, Cocoa Powder, Cream, Powder Syrup, Amino Acid, Seasonings, Puffed Food
GRANULATING
- Pesticide, Pigment, Dyestuff
DRYING
- Powder, Granule, Block Materials


Characteristics
◎Because of powder granulating, the uidity can be improved and the powder dust can be reduced;
◎Because of powder granulating, the solubility is improved;
◎The procedures of mixing, granulating and drying can be nished in one step(granulating through one step);
◎Because the atomizer for adhesive adapts multi-uid spray lance, the particle is uniform and the percent of pass of nished products is raised greatly;
◎There is no dead corner in equipment. It is quick and convenient to feeding and discharge;
◎The equipment is clean through washing.

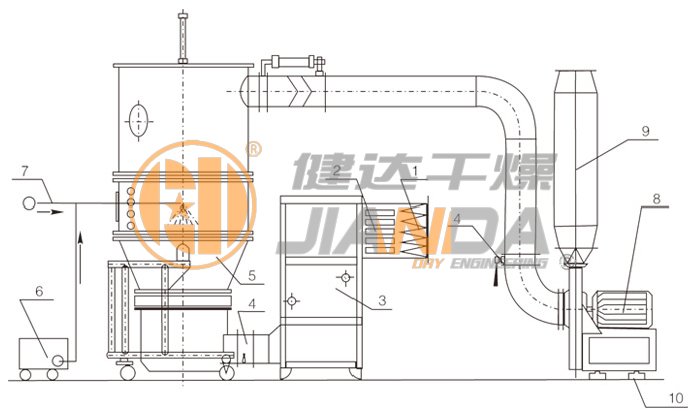

PRODUCTION FLOWCHART
Fluidizing And (Granulating) Dryer

1. Mid-effect filter 2. Postfilter 3. Heater 4. Distributor 5. Fluldized bed 6. Liquid feeding pump 7. Compressed air 8. Vacuum fan 9. Silencer 10. Vibration eliminator

Technical Parameter

Specification 3 5 15 30 45 60 90 120 150 200 300 500
Volume (L) 12 22 45 100 155 220 300 420 530 660 1000 1500
Amount to be treated (kg/per time) 1.5/4.5 4/6 10/20 15/45 25/65 40/80 60/120 80/160 90/200 100/300 150/450 300/300
Power of fan (kw) 2.2 3 4 5.5 7.5 11 15 18.5 18.5 22 30 37
Consume of steam 0.4MPa (kg/h) 12 23 42 70 99 141 169 211 251 282 366 451
Consume of compressed air (m3/min) 0.3 1.3 0.3 0.4 0.4 0.6 0.6 0.9 0.9 0.9 1.3 1.5
Noise,db (A) (fan is installedseparately)≤75
Overall dimension (m)

1.0x
0.55x1.8

1.2x
0.6x2.1

1.25x
0.9x2.1

1.6x
0.9x2.3

1.65x
1.1x2.4

1.85x
1.25x3

1.85x
1.25x3

2.2x
1.65x3.1

2.27x
1.72x3.1

2.34x
1.9x3.5

2.8x
1.9x3.8

3x
2.55x4.2

Note: Model FG can not be equipped with granulating part.
